Tongjie Product - 250MTJ3 High Pressure Plunger Pump

Technical data

Application scenarios

Product description

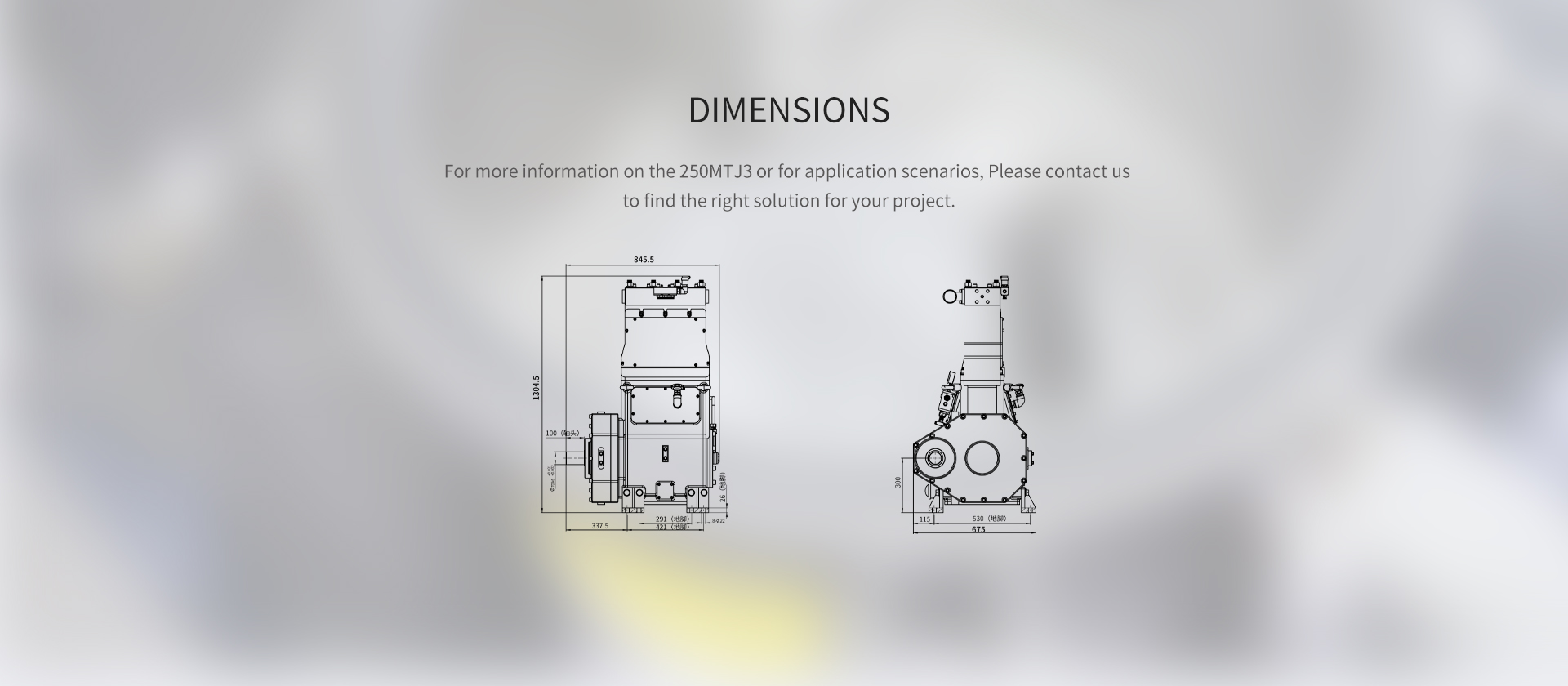

Product dimensions

It can be used vertically or horizontally, options for various layouts and space-saving.

The service life is greatly improved, suitable for continuous long-term operation, and can withstand high-temperature environments

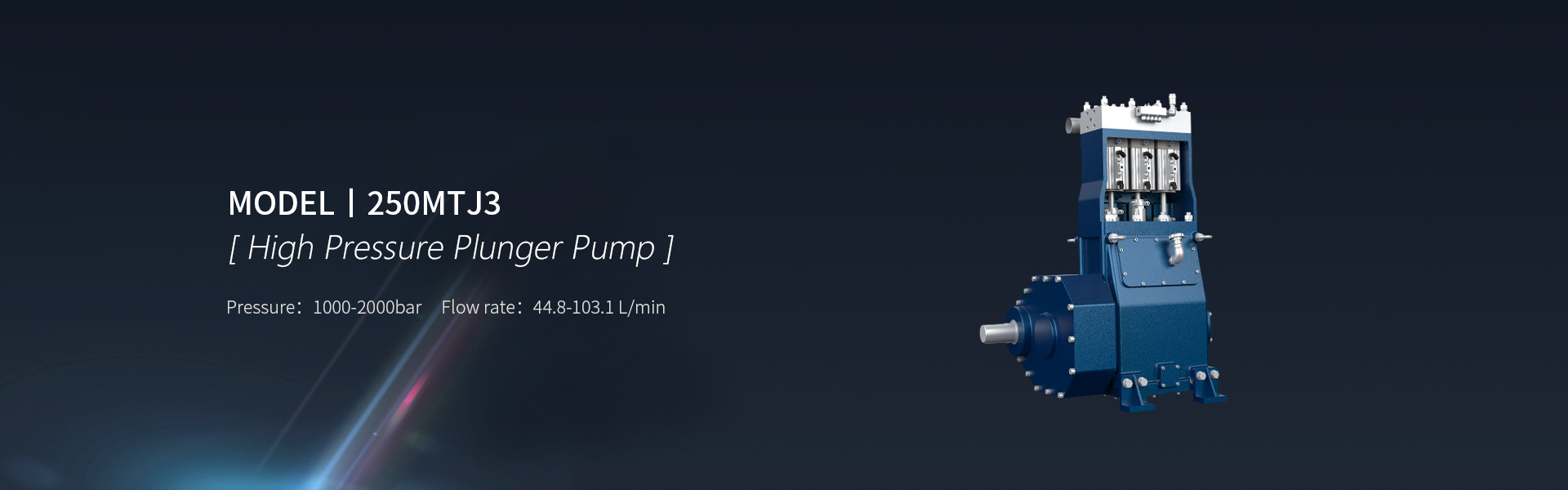

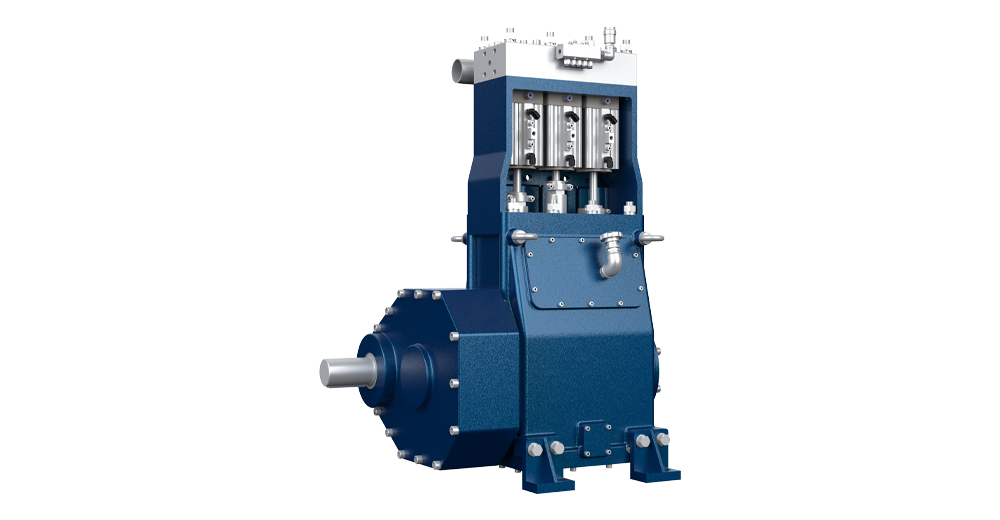

250MTJ3 High Pressure Plunger Pump

Technical data

High pressure pump shape

Length/width/height

845.5x675x1304.5mm

Weight

KG

900

Pressure range

bar

1000-2000

Flow range

L/min

44.8-103.1

Maximum power

kW

250

Ratio

3.63 / 2.96 / 2.47

-

-

-

-

Construction

Shipping

Chemical industry

Manufacturing

Petroleum

Electricity

Food

Pipelines

Vessels

Steel

Tanks & Kettles

Surface cleaning

Coal Mining
